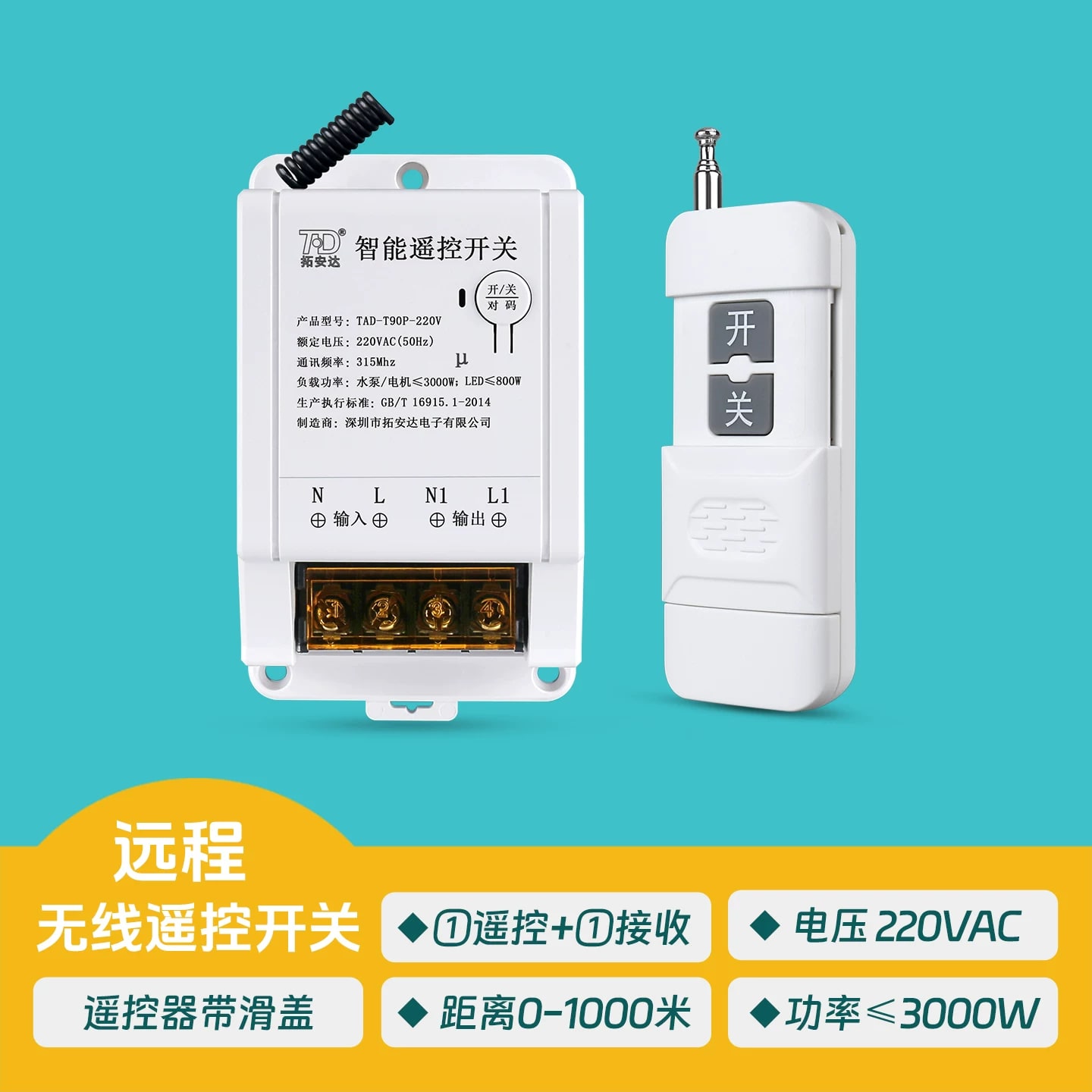

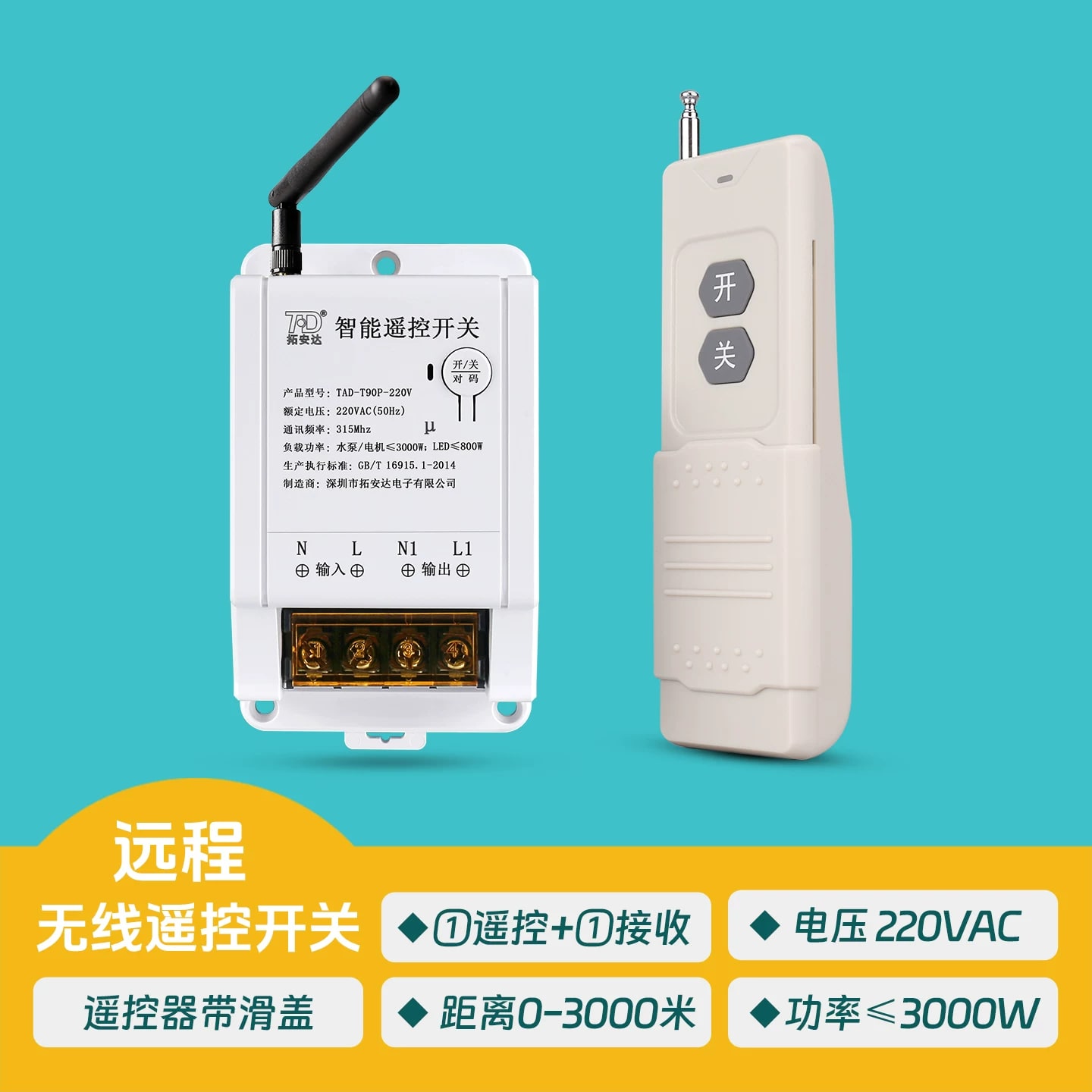

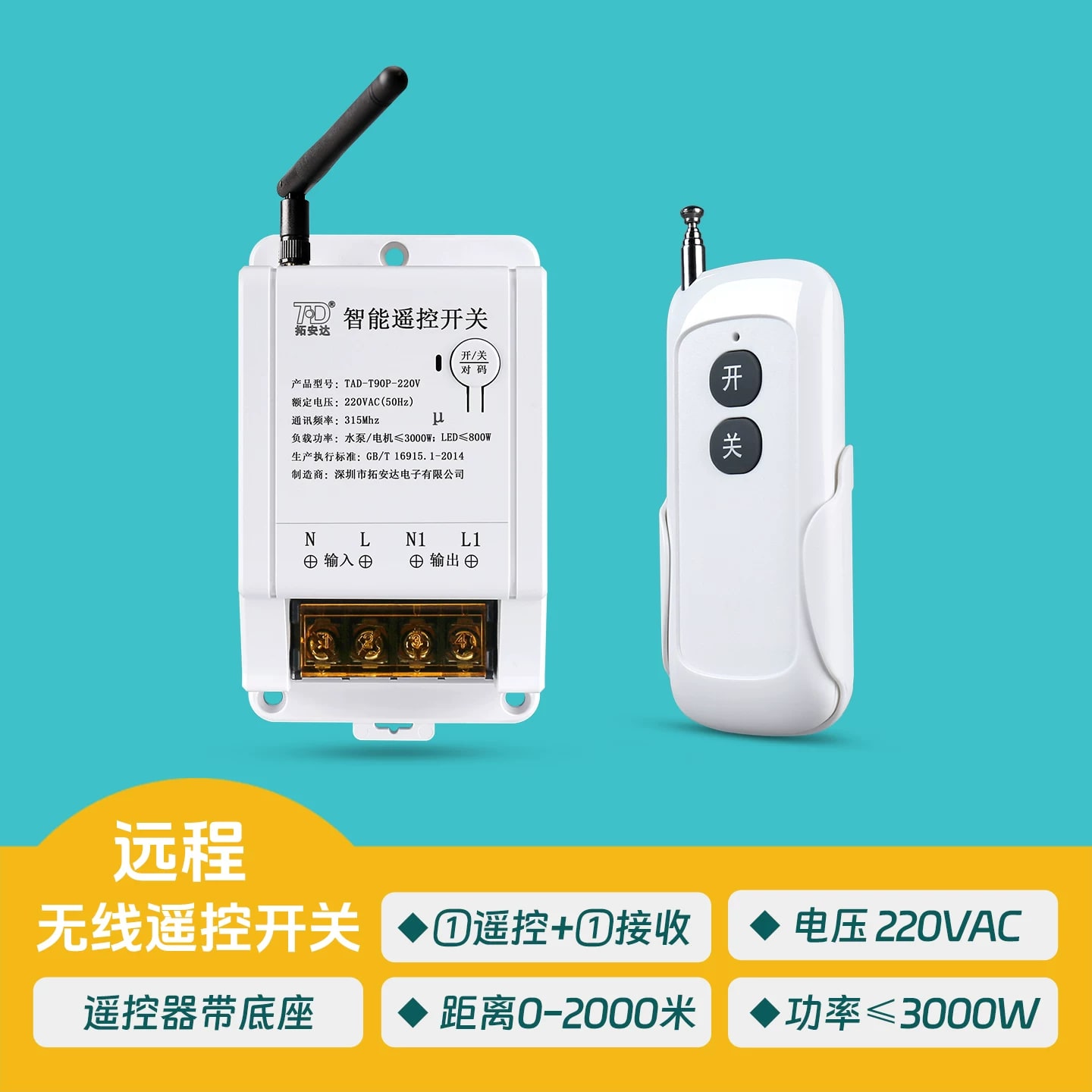

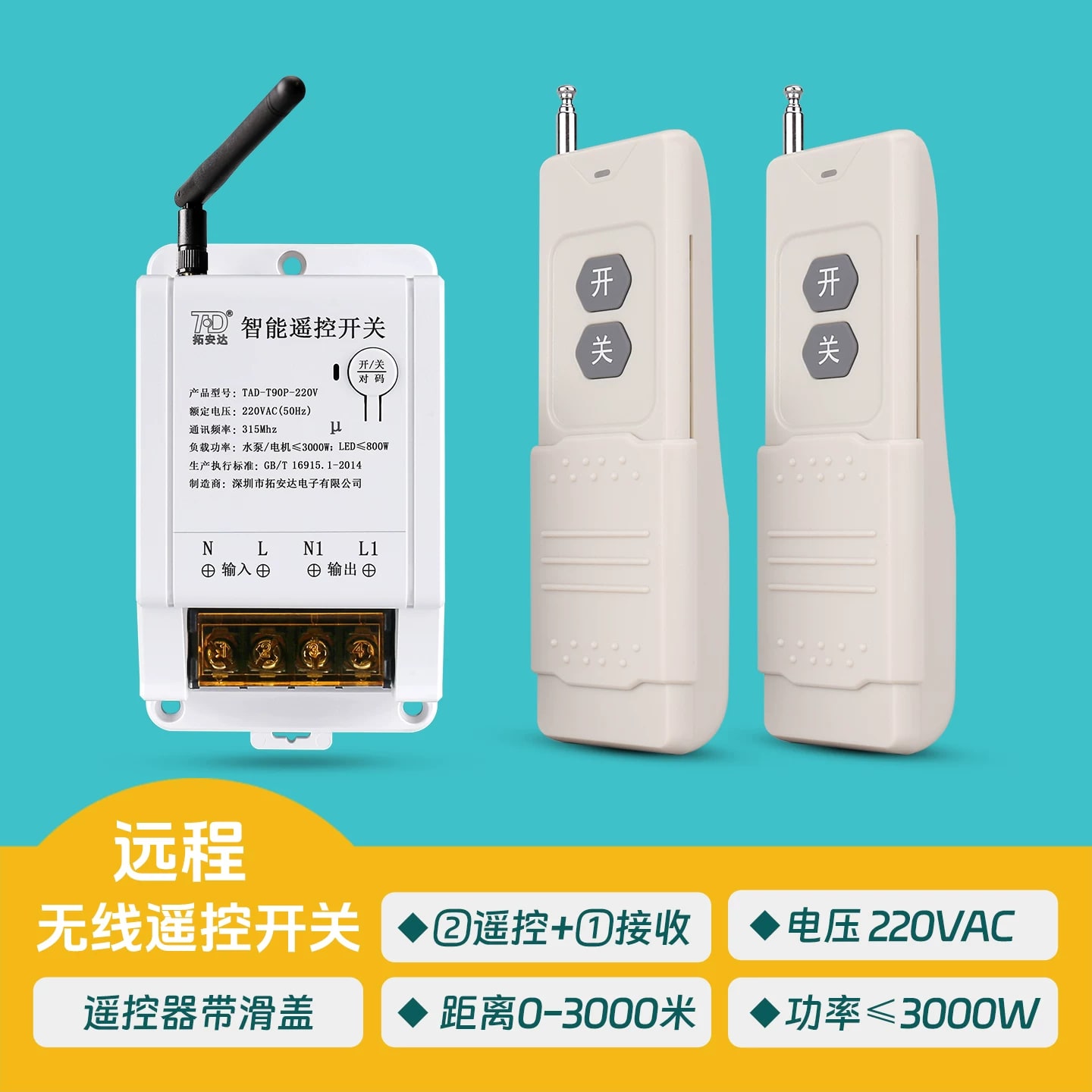

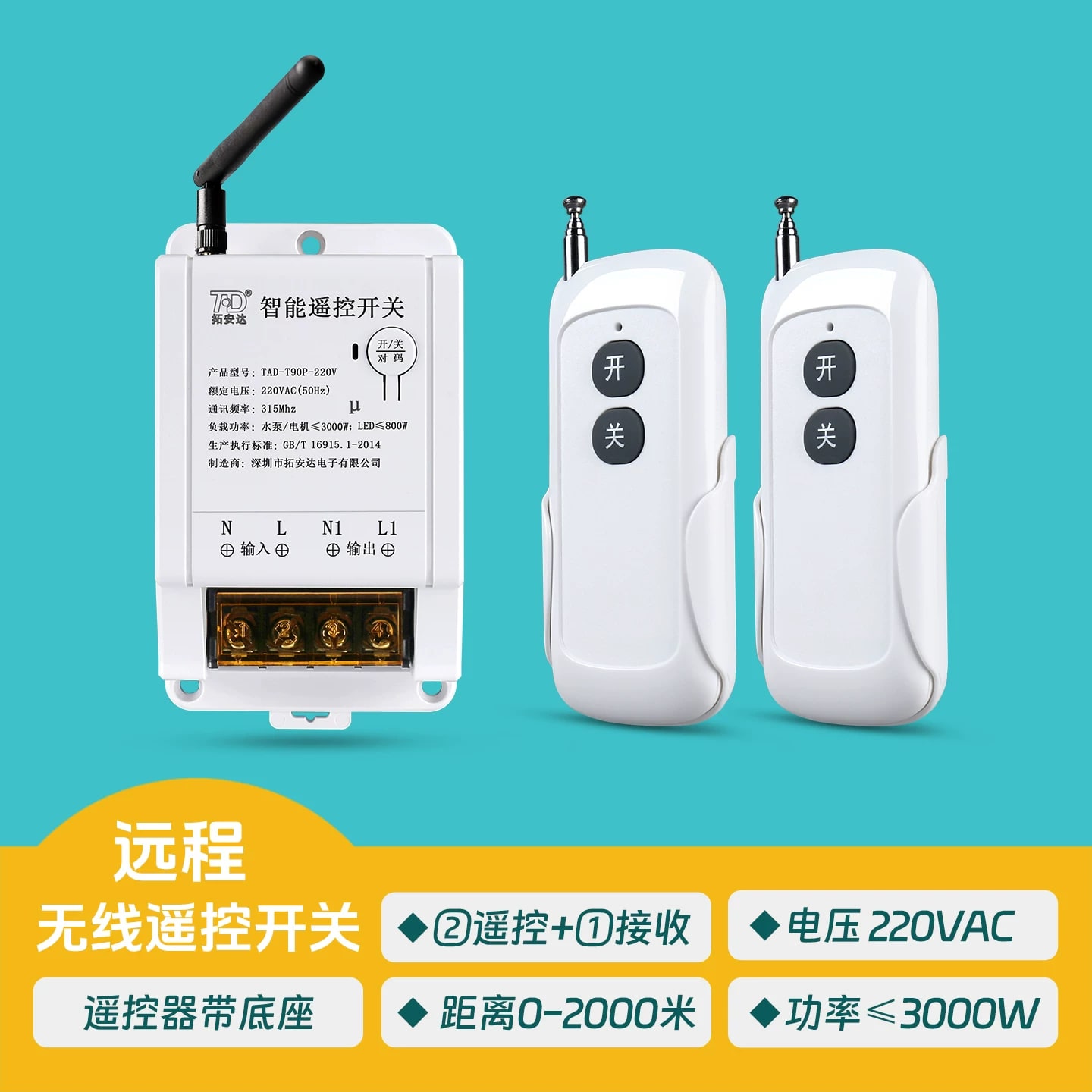

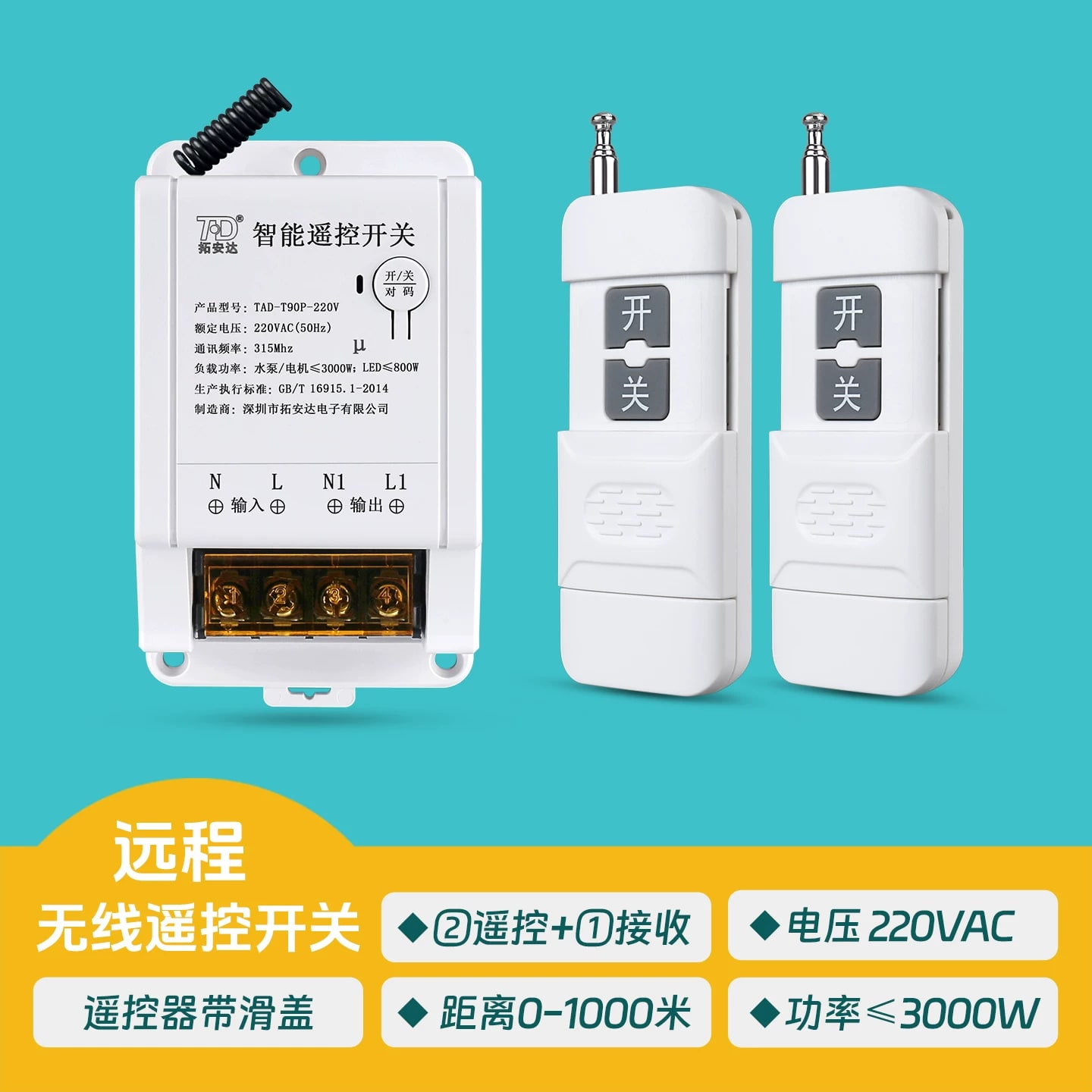

TD T90P Wireless Remote Switch for Pumps and Motors

Wired-in radio relay that lets you start and stop a borehole pump, a motor or a lighting circuit from a handheld remote instead of walking to the switch. The receiver wires in line with the load, the 315 MHz remote reaches up to the range shown on the option you pick, and the flame-retardant housing carries screw terminals for live and neutral in and out. Single-phase 220V models switch up to 3000 W or 6000 W; three-phase 380V models cover 7.5 kW and 22 kW motors, and there is a low-voltage DC 12-90V model. Some three-phase options are the controller only and expect you to supply your own contactor. • Starts and stops a pump or motor from a handheld remote • Range options from 1000 m up to 5000 m in open ground • Single-phase 220V up to 3000 W or 6000 W • Three-phase 380V options for 7.5 kW and 22 kW motors • Low-voltage DC 12-90V model also available Package contents: • 1 x receiver unit • 1 or 2 x handheld remote depending on the option Please note: • This unit is wired into the mains and must be installed by a qualified electrician. • Check the option carefully: the three-phase options marked 'contactor required separately' are the controller only and do not include the contact…
